Ultra Compact, Almost Lossless
Raytech's TRWT series are machined very accurately and designed to achieve stable and repeatable electrical performance. Due to the short electrical length, the loss is almost indistinguishable through the entire waveguide bandwidth. Furthermore, the simplicity of structure allows uniform plating inside of the waveguide channel due to the easy access of plating solution.
| Type | Model Number | Frequency | Insertion Loss | Outline |
|---|---|---|---|---|
| B (Standard) | TRWT-90B10S0 | 75 - 110 GHz | < 0.1 dB | Download |
| B (Standard) | TRWT-90B12S0 | 60 - 90 GHz | < 0.1 dB | Download |
| B (Standard) | TRWT-90B15S0 | 50 - 75 GHz | < 0.1 dB | Download |

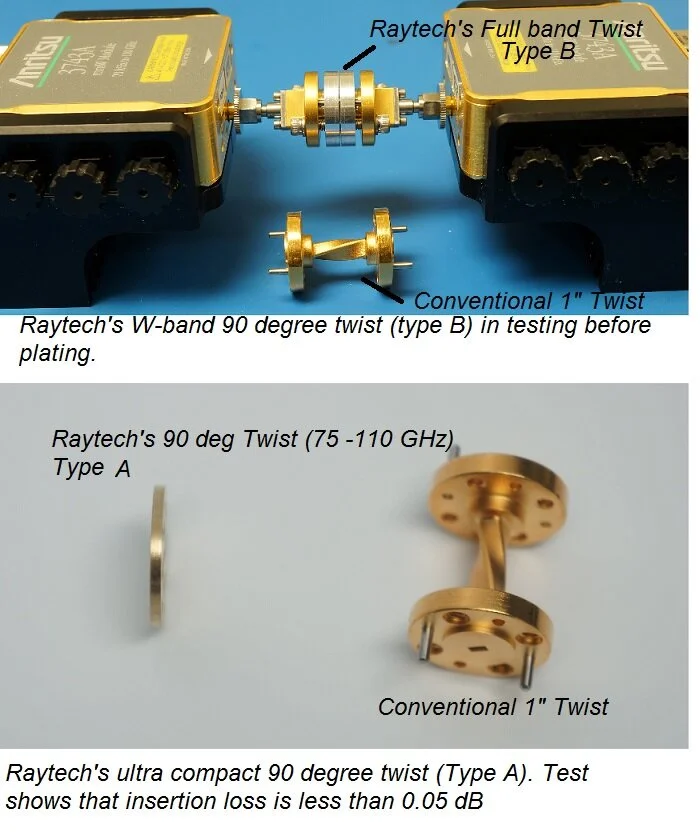

| A (Shim) | TRWT-90A10S0 | 75 - 110 GHz | < 0.05 dB | Download |
| A (Shim) | TRWT-90A90S0 | 8.2 - 12.4GHz | <0.05 dB | Download |

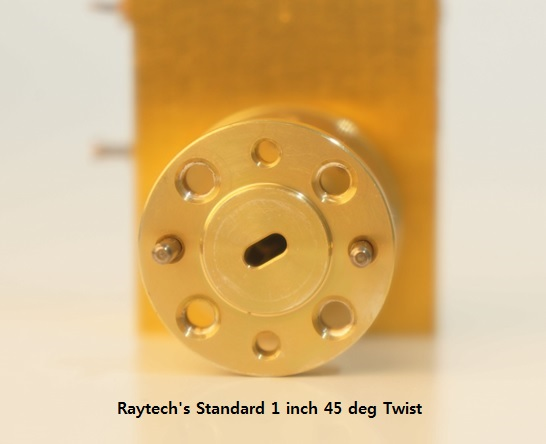

| 1 Inch | TRWT-45R1200 | 60 - 90 GHz | 0.2 dB | Download |
| 1 Inch | TRWT-45L1200 | 60 – 90 GHz | 0.2 dB | Download |
